Multistream Legacy Support
This article provides details on how to use multistream features in older versions of the Webex Mobile SDK.
However, we highly recommend using the latest Webex Mobile SDKs. Refer to the newer Multistream documentation for the current implementation.
anchorMultistream in SDK 2.8 Using Aux Streams

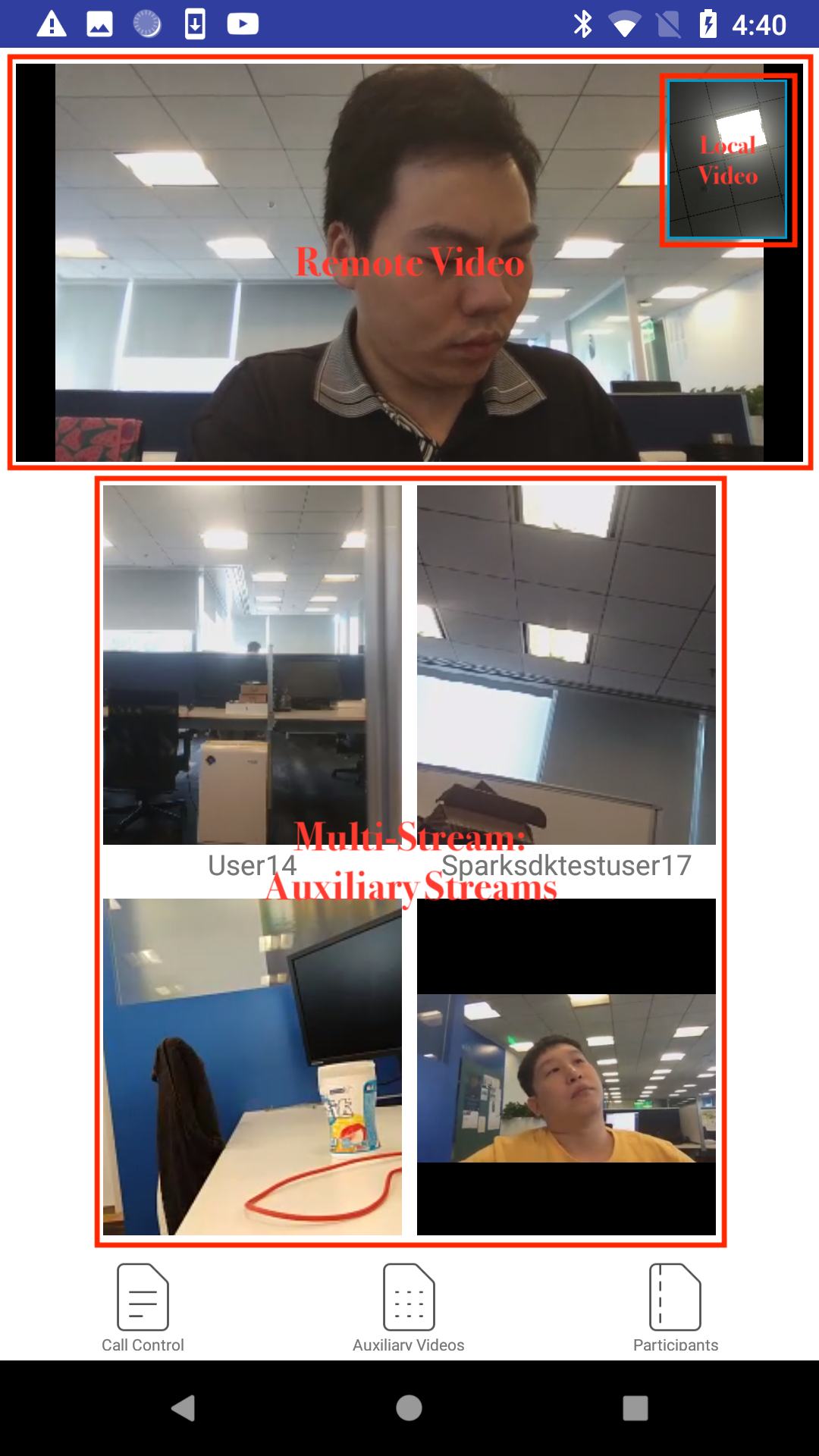

anchorMultistream allows participants to see the video of the most active speakers in a meeting. Each video stream is known as an auxiliary stream. Auxiliary streams can display active participants, with the primary active speaker shown on the main remote video view and other active speakers on auxiliary video views.
Typical Scenario in SDK 2.8
In meetings with more than two participants, use multistream to view the active speaker and other participants.
Limitations in SDK 2.8
Please be aware of the following limitations:
- A maximum of 4 auxiliary video streams are allowed.
- The stream for a specific participant is based on activity, not selection.
anchorImplementing Multistream in SDK 2.8
anchorTo use multi-stream, implement the MultiStreamObserver
interface:
public interface MultiStreamObserver {
View onAuxStreamAvailable();
View onAuxStreamUnavailable();
void onAuxStreamChanged(AuxStreamChangedEvent event);
}
Provide a View for an Auxiliary Stream
When a new auxiliary stream is available, the SDK calls onAuxStreamAvailable
and the client provides a view for rendering. The AuxStreamOpenedEvent
indicates if the stream opened successfully:
@Override
public View onAuxStreamAvailable() {
// SDK will open this auxiliary stream with this view and the result will be notified by AuxStreamOpenedEvent.
View auxStreamView = LayoutInflater.from(getActivity()).inflate(R.layout.remote_video_view, null);
AuxStreamViewHolder auxStreamViewHolder = new AuxStreamViewHolder(auxStreamView);
mAuxStreamViewMap.put(auxStreamViewHolder.mediaRenderView, auxStreamViewHolder);
return auxStreamViewHolder.mediaRenderView;
}
Close an Auxiliary Stream
When an auxiliary stream is unavailable, the SDK calls onAuxStreamUnavailable
. The client can then provide a view to be closed or allow the SDK to close the last opened stream:
@Override
public View onAuxStreamUnavailable() {
// You can close a view or let the SDK automatically close the last opened view.
// The result will be signalled by a AuxStreamClosedEvent.
return null;
}
Display an Auxiliary Stream
Handle the AuxStreamOpenedEvent
to display the auxiliary stream view if it is successfully opened.
Hide an Auxiliary Stream
Handle the AuxStreamClosedEvent
to hide the auxiliary stream view when it is successfully closed:
@Override
public void onAuxStreamChanged(AuxStreamChangedEvent event) {
if (event instanceof MultiStreamObserver.AuxStreamOpenedEvent) {
if ((AuxStreamOpenedEvent)event.isSuccessful()){
Ln.d("AuxStreamOpenedEvent successful");
viewAuxVideos.addView(mAuxStreamViewMap.get((AuxStreamOpenedEvent)event.getRenderView()).item);
}else{
Ln.d("AuxStreamOpenedEvent failed: " + (AuxStreamOpenedEvent)event.getError());
mAuxStreamViewMap.remove((AuxStreamOpenedEvent)event.getRenderView());
}
} else if (event instanceof MultiStreamObserver.AuxStreamClosedEvent) {
if ((AuxStreamClosedEvent)event.isSuccessful()){
Ln.d("AuxStreamClosedEvent successful");
AuxStreamViewHolder auxStreamViewHolder = mAuxStreamViewMap.get((AuxStreamClosedEvent)event.getRenderView());
mAuxStreamViewMap.remove((AuxStreamClosedEvent)event.getRenderView());
viewAuxVideos.removeView(auxStreamViewHolder.item);
}else{
Ln.d("AuxStreamClosedEvent failed: " + (AuxStreamClosedEvent)event.getError());
}
}
}
anchorMultistream in SDK 3.0 Using Aux Streams

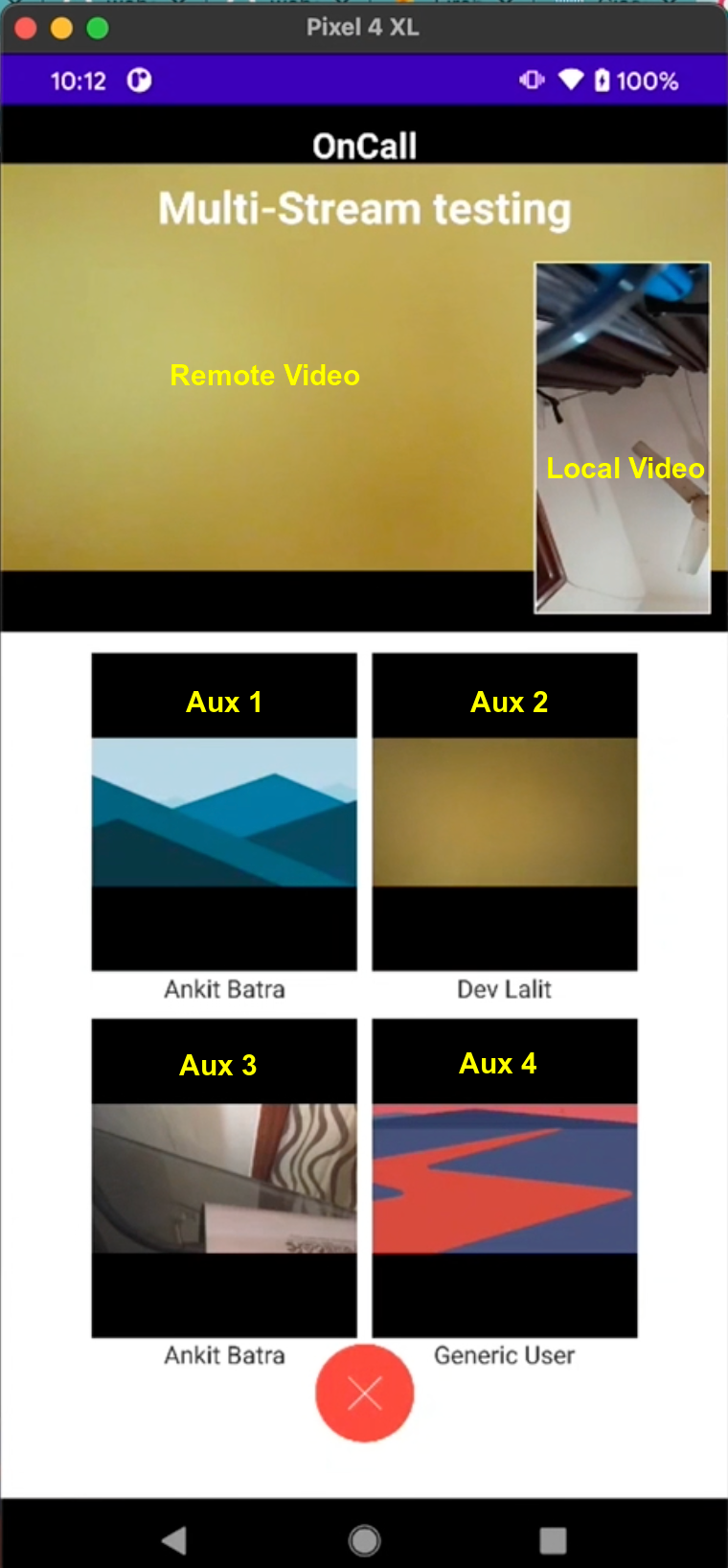

anchorMultistream displays the video of the most active participants. Streams are allocated based on the order of joining, and participants exceeding the limit are placed in a queue. Active speakers can take over streams, and when participants leave, others from the queue will replace them.
Limitations in SDK 3.0
Please be aware of the following limitations:
- A maximum of 4 auxiliary video streams are allowed.
- The stream for a specific participant is based on activity, not selection.
anchorImplementing Multistream in SDK 3.0
anchorTo implement multi-stream in SDK 3.0, inherit from MultiStreamObserver
:
interface MultiStreamObserver {
fun onAuxStreamAvailable(): View?
fun onAuxStreamUnavailable(): View?
fun onAuxStreamChanged(event: AuxStreamChangedEvent?)
}
Provide a View to Open a Stream
When a new stream is available, the onAuxStreamAvailable
method is called. The client provides a view to render the stream:
override fun onAuxStreamAvailable(): View? {
return mediaRenderView
}
Provide a View to Close the Stream
If a stream is unavailable, such as when a participant leaves the meeting and the number of joined participants is smaller than the number of opened streams, the SDK will trigger the OnAuxStreamUnavailable
callback. The client should provide the SDK with a view handle to be closed. If the given view is null, the SDK will automatically close the last opened stream if needed:
override fun onAuxStreamUnavailable(): View? {
return null
}
Display the Stream View
Handle the AuxStreamOpenedEvent
to display the stream view when it is successfully opened.
Hide the Stream View
Handle the AuxStreamClosedEvent
to hide the stream view when it is successfully closed:
override fun onAuxStreamChanged(event: MultiStreamObserver.AuxStreamChangedEvent?) {
val auxStream: AuxStream? = event?.getAuxStream()
when (event) {
is MultiStreamObserver.AuxStreamOpenedEvent -> {
if (event.isSuccessful()) {
...
} else {
// error occurred
}
}
is MultiStreamObserver.AuxStreamClosedEvent -> {
if (event.isSuccessful()) {
...
} else {
// error occurred
}
}
is MultiStreamObserver.AuxStreamSendingVideoEvent -> {
...
}
is MultiStreamObserver.AuxStreamPersonChangedEvent -> {
...
}
is MultiStreamObserver.AuxStreamSizeChangedEvent -> {
...
}
}
}
