The Webex calling system handles incoming calls through webhooks in the SDK environment. Developers register a webhook with a targetUrl for their server backend to receive notifications. These notifications are then delivered to mobile apps via APNS (Apple Push Notification Service) or FCM (Firebase Cloud Messaging), enabling the app to manage incoming calls in any state—whether in the foreground, background, or terminated.

The following diagram illustrates how incoming call notifications are delivered.

anchorConfigure a Webhook for Incoming Calls

1. An organization administrator sets up a firehose webhook to monitor telephony_push events and alert a designated server URL upon their firing:

   {
   "name": "Webex Calling XYZ Firehose",
   "targetUrl": "https://example.com/message-events", // Server URL of the backend server capable of receiving webhook notifications.
   "resource": "telephony_push",
   "event": "updated"
   }


2. After successfully logging into the mobile app, the app transmits the user's Person ID and push token (APNS or FCM) to the backend server for storage. The backend uses the Person ID to identify the Webex user upon receiving a webhook notification, and the push token to send notifications to the user's device:

   webex.people.getMe(completionHandler: { [weak self] in
       switch $0 {
       case .success(let user):
           let personId = user.encodedId
       case .failure(let error):
           // Error getting current user
       }
   })


   To set up Apple Push Notification Service for your iOS app, refer to this link. To handle VoIP notifications, you need to set up CallKit in your app. Refer to this link.

3. Upon receiving a webhook notification indicating an incoming call, the backend server uses the actorId field to identify the user. It then sends the corresponding payload—apnsPayload for iOS to the user's device, leaving the content unchanged.

4. Upon receiving the FCM or APNS payload, the mobile app should forward it to the SDK API for processing.

anchorProcessing the Incoming Call Payload

Here's how an app processes the incoming call notification:

1. Receive the notification payload: The PKPushRegistryDelegate class's didReceiveIncomingPushWith method receives the notification payload. The app verifies that the Webex SDK is initialized and authorized, then sets an incoming call listener before processing the message:

   if type == .voIP {
       // Report the call to CallKit, and let it display the call UI.
       guard let bsft = payload.dictionaryPayload["bsft"] as? [String: Any], let sender = bsft["sender"] as? String else {
       print("payload not valid")
       return
       }
       callKitManager?.reportIncomingCallFor(uuid: UUID(), sender: sender) {
       completion()
       self.establishConnection(payload: payload)
       }
   }


2. Set the incoming call listener and process the message: The app sets an incoming call listener and processes the push notification message using the webex.phone.processPushNotification() method:

   webex.initialize { [weak self] success in
       if success {
           webex.phone.onIncoming = { [weak self] call in
           self?.callKitManager?.updateCall(call: call)
           }
           do {
               let data = try JSONSerialization.data(withJSONObject: payload.dictionaryPayload, options: .prettyPrinted)
               let string = String(data: data, encoding: .utf8) ?? ""
               // Received push.
               webex.phone.processPushNotification(message: string) { error in
                   if let error = error {
                       // processPushNotification error.
                   }
               }
           }
           catch (let error){
               // Error.
           }
       }
   }


   func application(_ application: UIApplication, didReceiveRemoteNotification userInfo: [AnyHashable : Any], fetchCompletionHandler completionHandler: @escaping (UIBackgroundFetchResult) -> Void) {
       guard let authType = UserDefaults.standard.string(forKey: "loginType") else { return }
       if authType == "jwt" {
           // init Webex using JWT.
       } else if authType == "token" {
           // init Webex using token.
       } else {
           // init Webex using OAuth.
       }
       DispatchQueue.main.async {
           webex.initialize { success in
               if success {
                   do {
                       let data = try JSONSerialization.data(withJSONObject: userInfo, options: .prettyPrinted)
                       let string = String(data: data, encoding: .utf8) ?? ""
                       // Received push.
                       webex.phone.processPushNotification(message: string)  { error in
                           if let error = error {
                               // processPushNotification error.
                           }
                       }
                   }
                   catch (let error){
                       // error.
                   }

               }
           }
       }
   }


   The application receives an incoming Call object through the Phone.IncomingCallListener observer, which is set using webex.phone.onIncoming.

3. Answering or rejecting a call: The app can answer the call using the answer API or reject it using the reject API:

   call.answer(option: MediaOption.audioOnly(), completionHandler: { error in
       if error != nil {
           ...
       }
   })


   call?.reject(completionHandler: { error in
       if error == nil {
           // Reject call successful.
       } else {
           // Reject call failed.
       }
   })


anchorCall Observer Events

telephony_push events from webhooks indicate NewCall type notifications, signifying a new incoming call for a particular user.

The app can monitor the following key call state changes:

call.onConnected = {
    // Indicates call is successfully established.
}
call.onDisconnected = { reason in
    // Indicates call is disconnected.
}
call.onRinging = {
    // Indicates call is placed and is in ringing state.
}
call.onInfoChanged = {
    // Indicates call info is updated.
    // call.externalTrackingId can be used here to retrieve a tracking ID.
}

Key Observer Events

Key events include:

1. onRinging : The call is placed, and the remote participant's device is ringing.
2. onConnected : The call is successfully established.
3. onDisconnected : The call is disconnected; this event is also triggered when the call is answered on another device.
4. onInfoChanged : Call details in the Call object are updated.

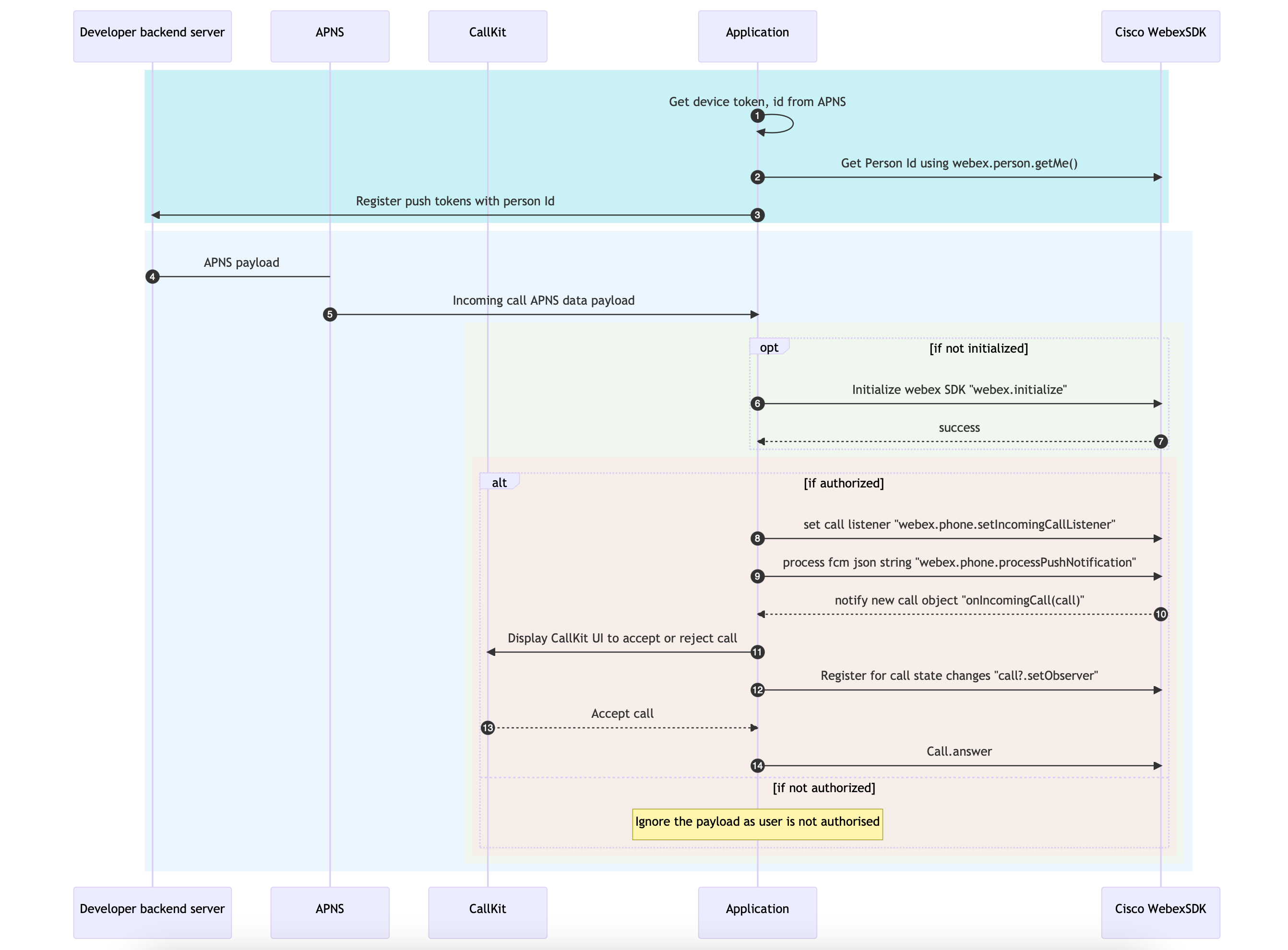

anchorIncoming Call Sequence Diagram

anchorHande Multiple Incoming Calls

Here's a typical scenario for managing two incoming calls:

1. Receive the first incoming call notification.
2. Display the notification to the user.
3. If the user accepts, the first call is active.
4. When a second incoming call notification arrives, display it to the user.
5. If the user accepts the new call:
   • The active call is put on hold.
   • The new call is answered.
6. The user can switch between calls by toggling hold/resume states.
7. Calls can be ended using their respective call object.
8. CallObserver notifications should be handled to update the UI accordingly.
9. If the user rejects the new call, the active call remains uninterrupted.
